SonicBeam SB-18

Back to all products

The 18" model that creates a beam of sound 1.5 feet wide.
Available for Purchase
Enquire

Home » Directional Bar Speakers » SonicBeam SB-18

Smaller version of the SB-47 with similar throw but smaller width dispersion.

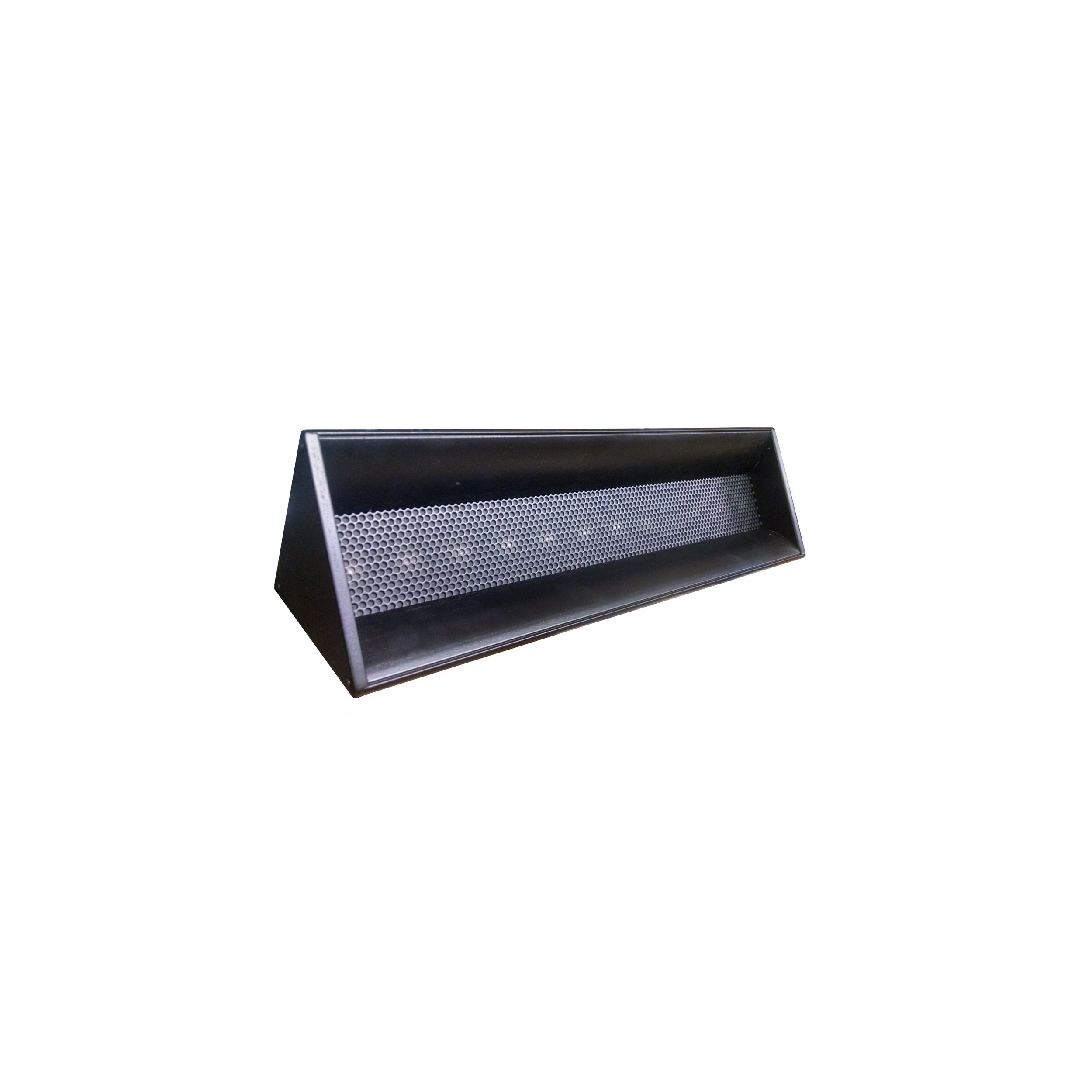

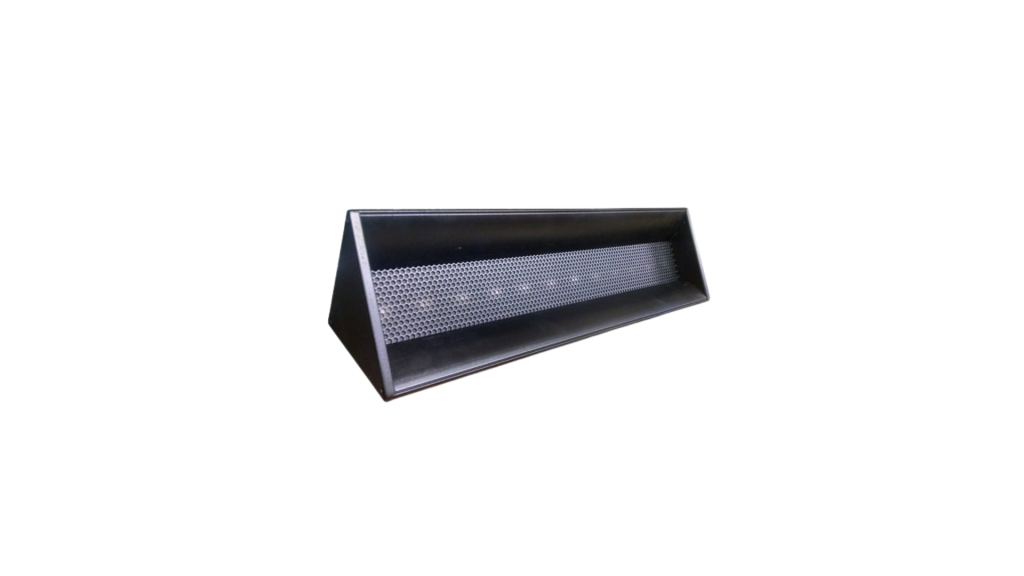

Compact directional speaker that creates a focused beam of sound 1.5 feet wide. Great quality frequency response and suitable for both speech and music applications.

Available for Purchase
Enquire
SB-18

Size

Compact size

The smaller dimensions of the 18″ model allows a simple installation process. The beam width is suitable for 1-2 people.

Contact us

Sound quality

Great frequency response

The phased array technology means that the output has great frequency response which allows the speaker to be used for both speech and music

Enquire

Discover which directional speaker matches your requirements

Answer a few questions to learn what’s best for you…

  • Experts in our field
  • Widest range of directional sound systems in Europe
  • Options for purchase or hire

Specifications

Amplification

Standard amp delivers audio in mono. Can be wired for stereo if required

Amplifier Power Requirements

Minimum: 1 watt per channel Maximum: 100 watts peak per channel

Sensitivity

100 dB SPL 1 watt, 1 meter

Impedance

4Ω Mono

Physical Dimensions

45.8cm Wide 13.9cm Height 11.6cm Depth 1.6kg Weight

Mounting

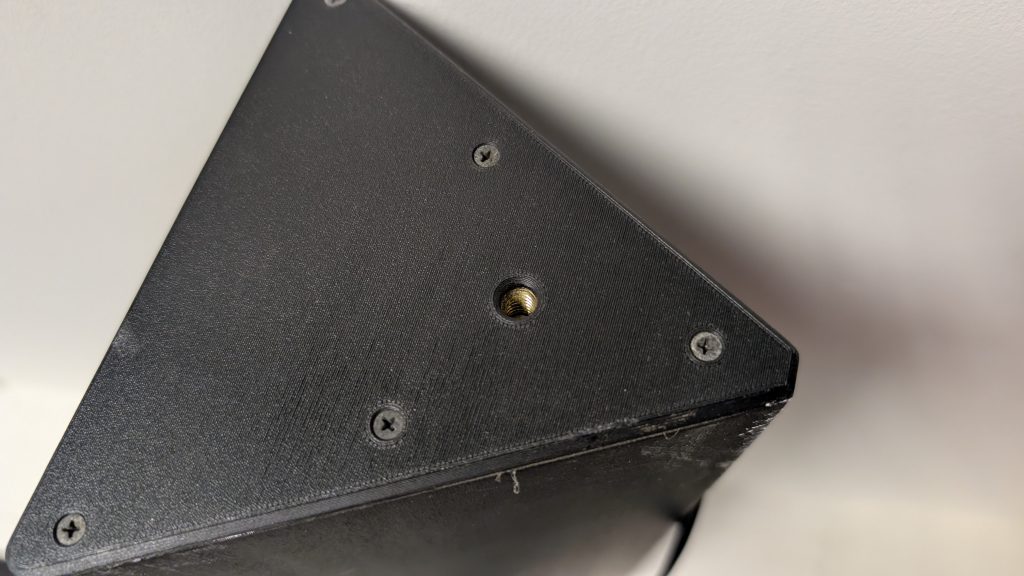

Grommets on back of speaker

Power Supply

17 Vac 1.25 Amp 120 Vac external wall pack supplied 100 Vac and 220 Vac available
