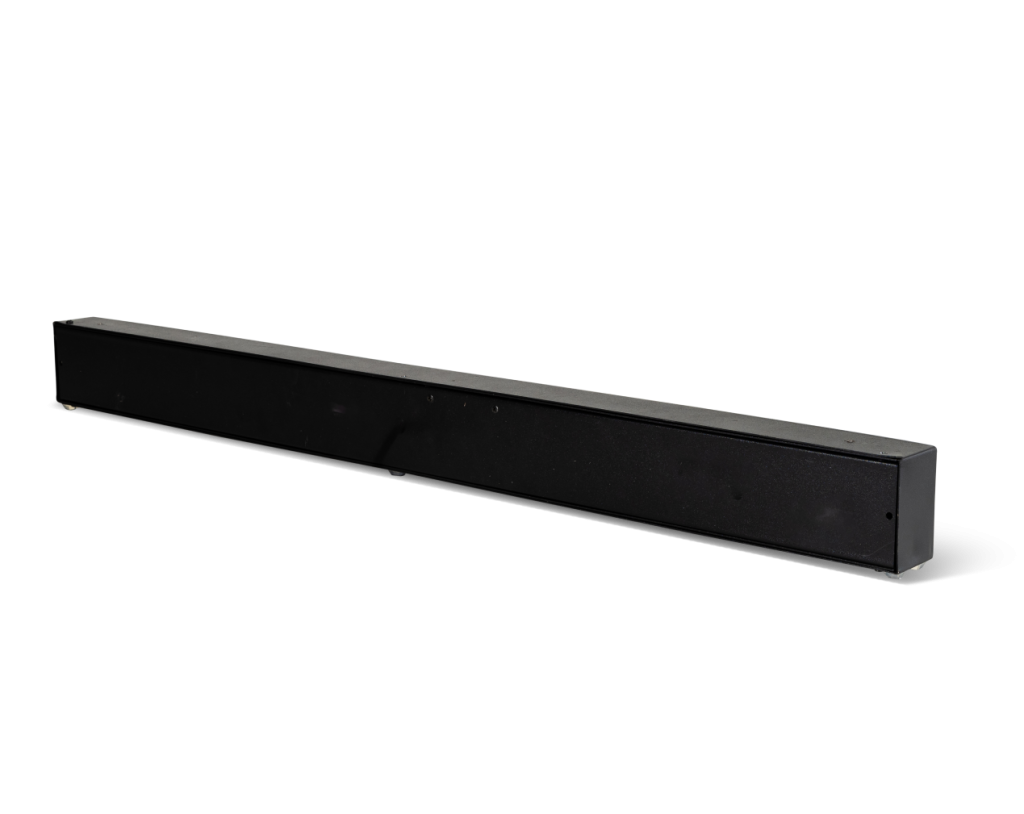

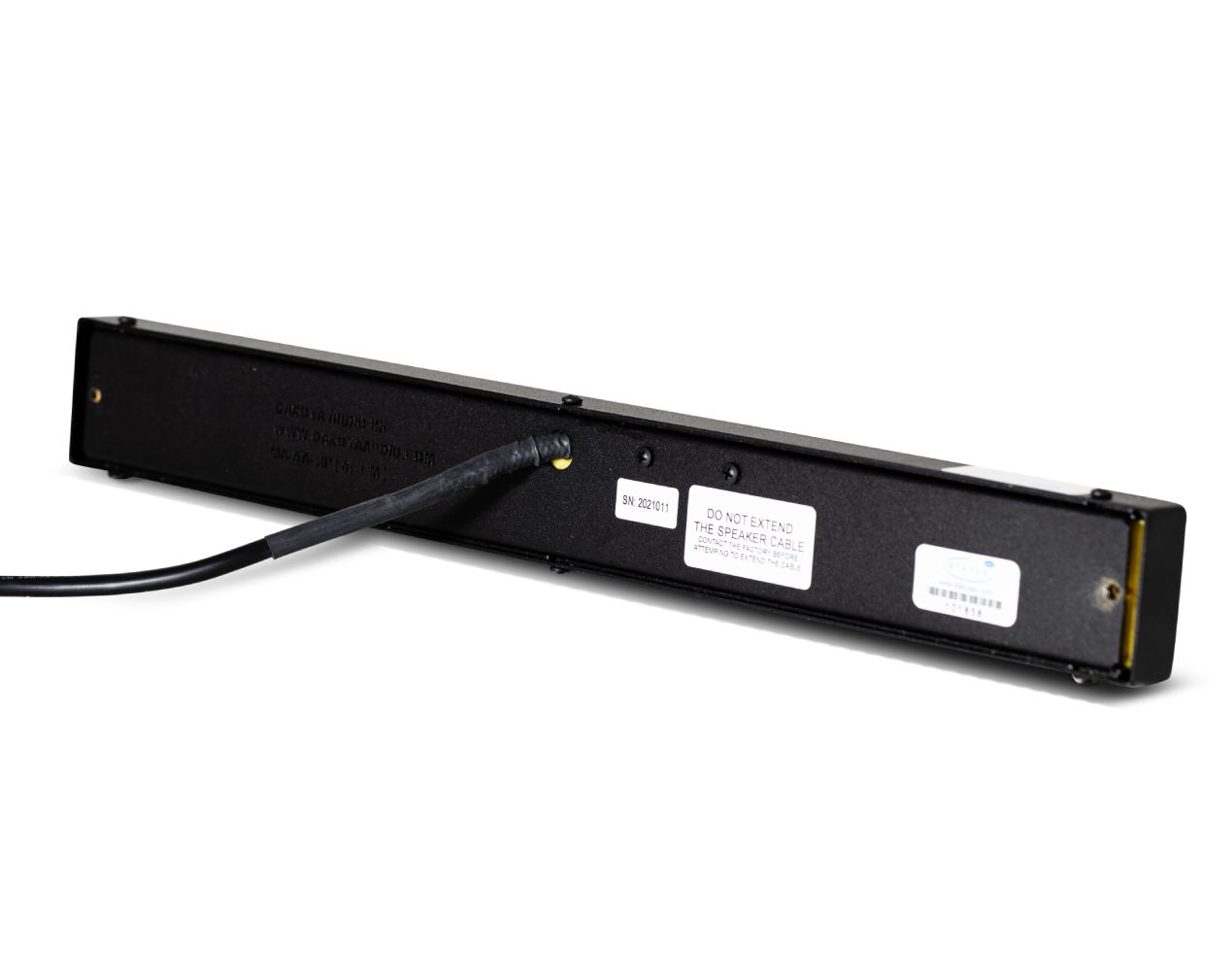

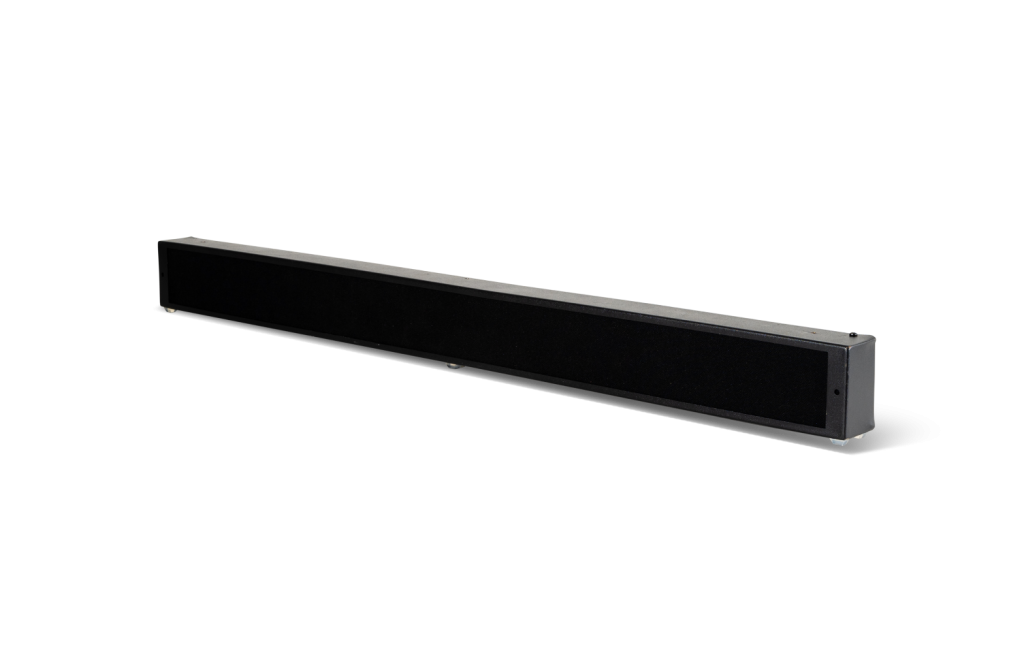

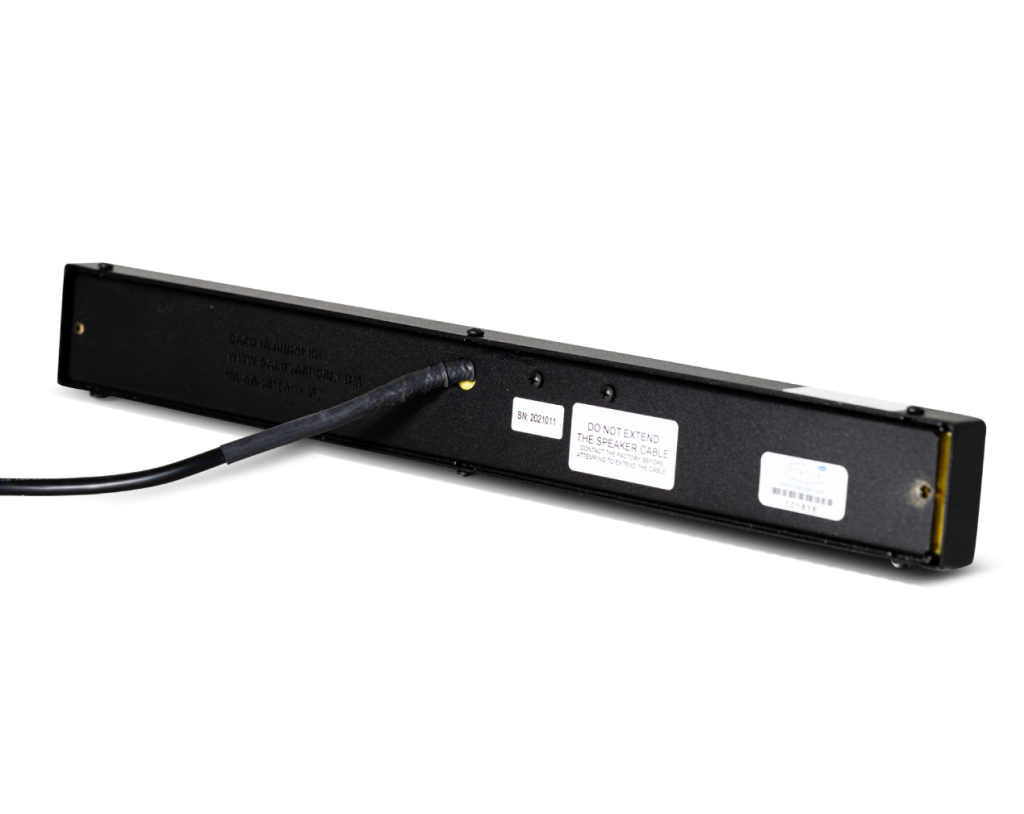

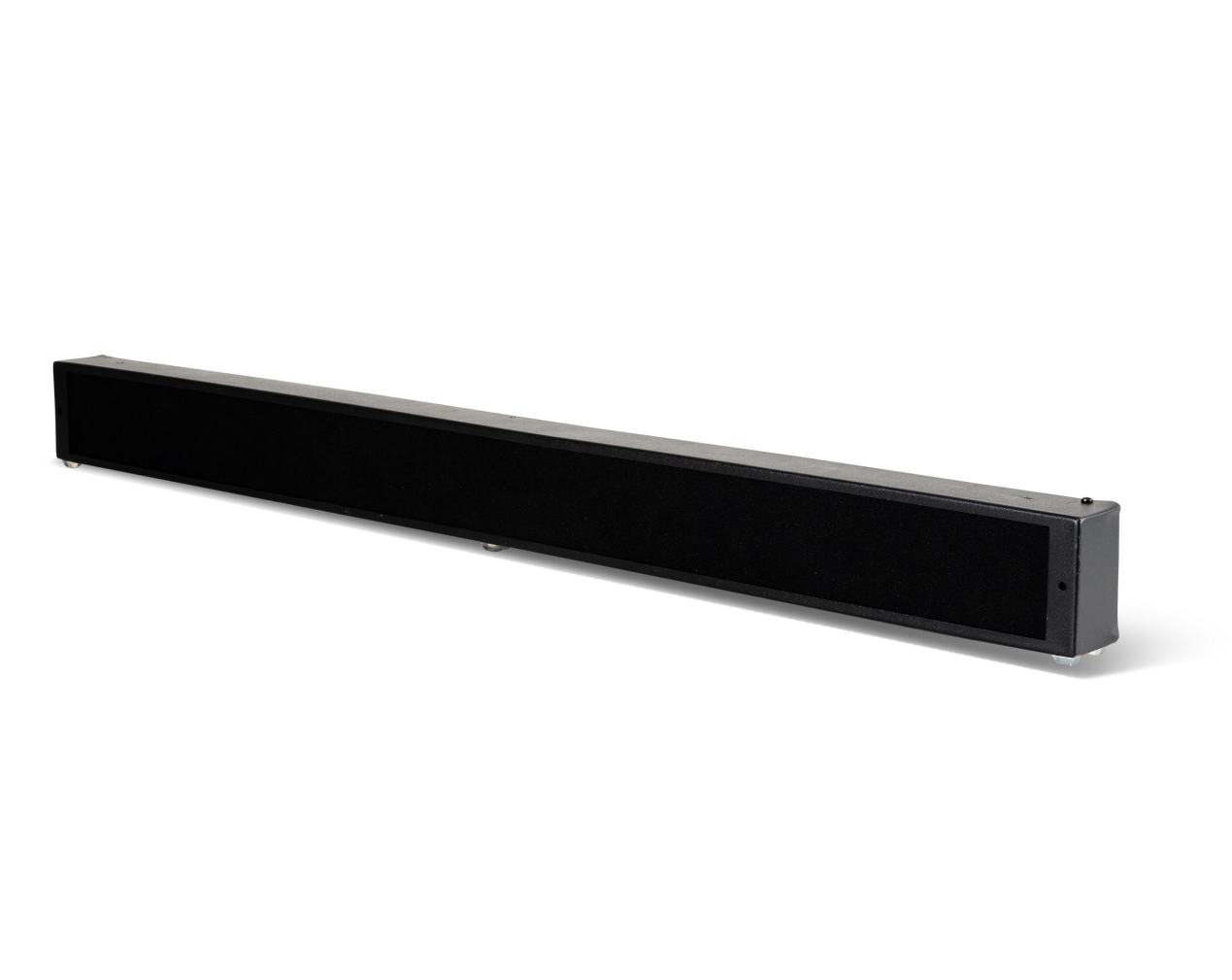

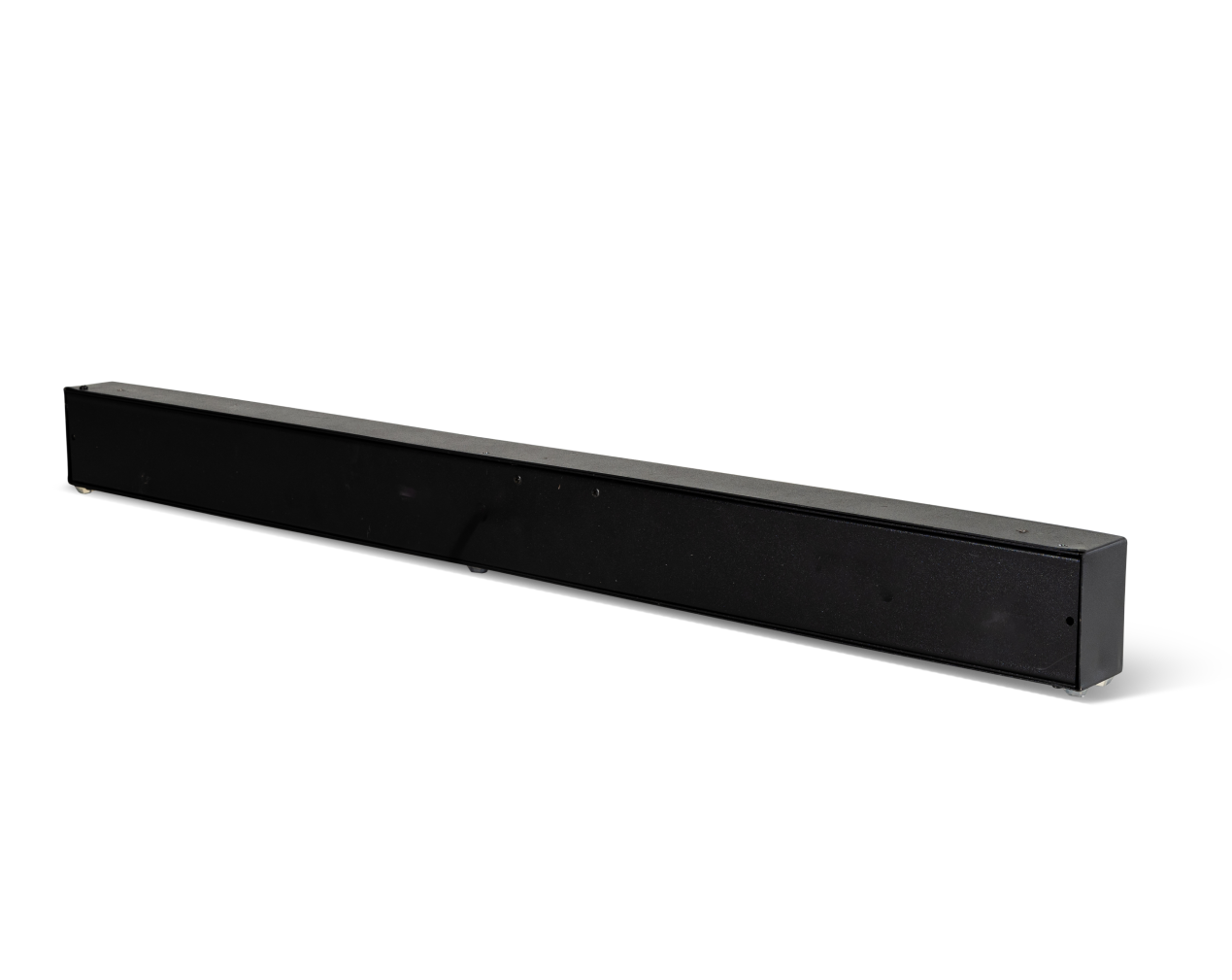

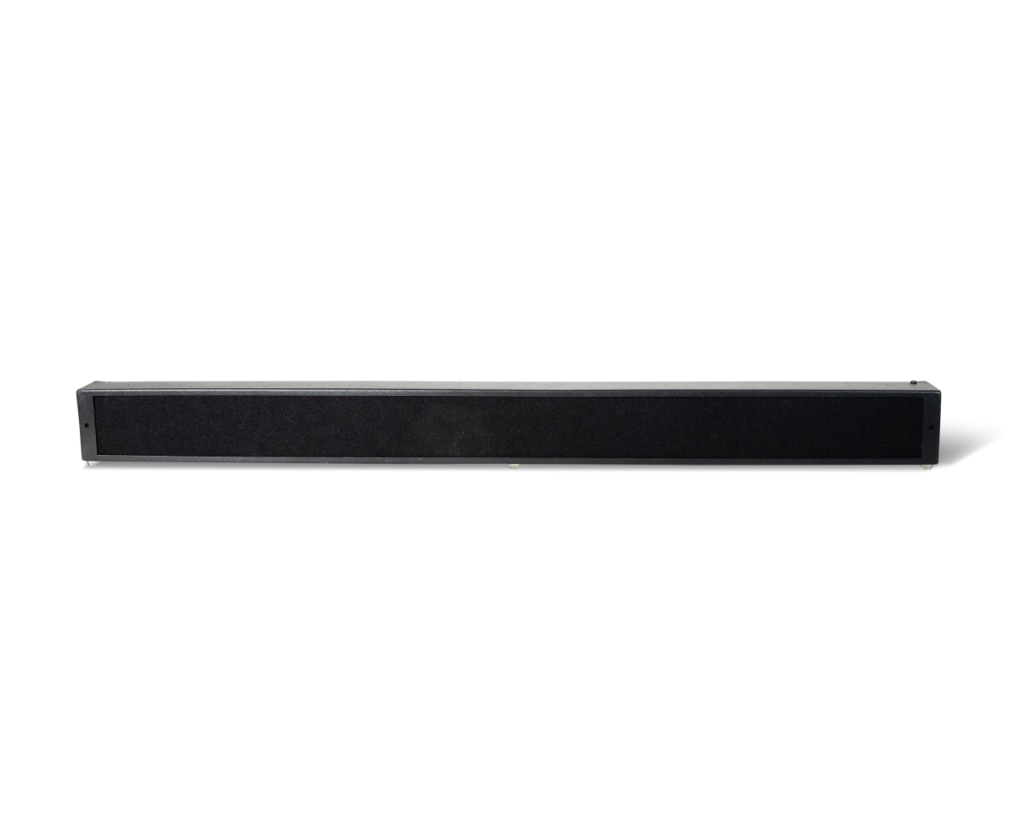

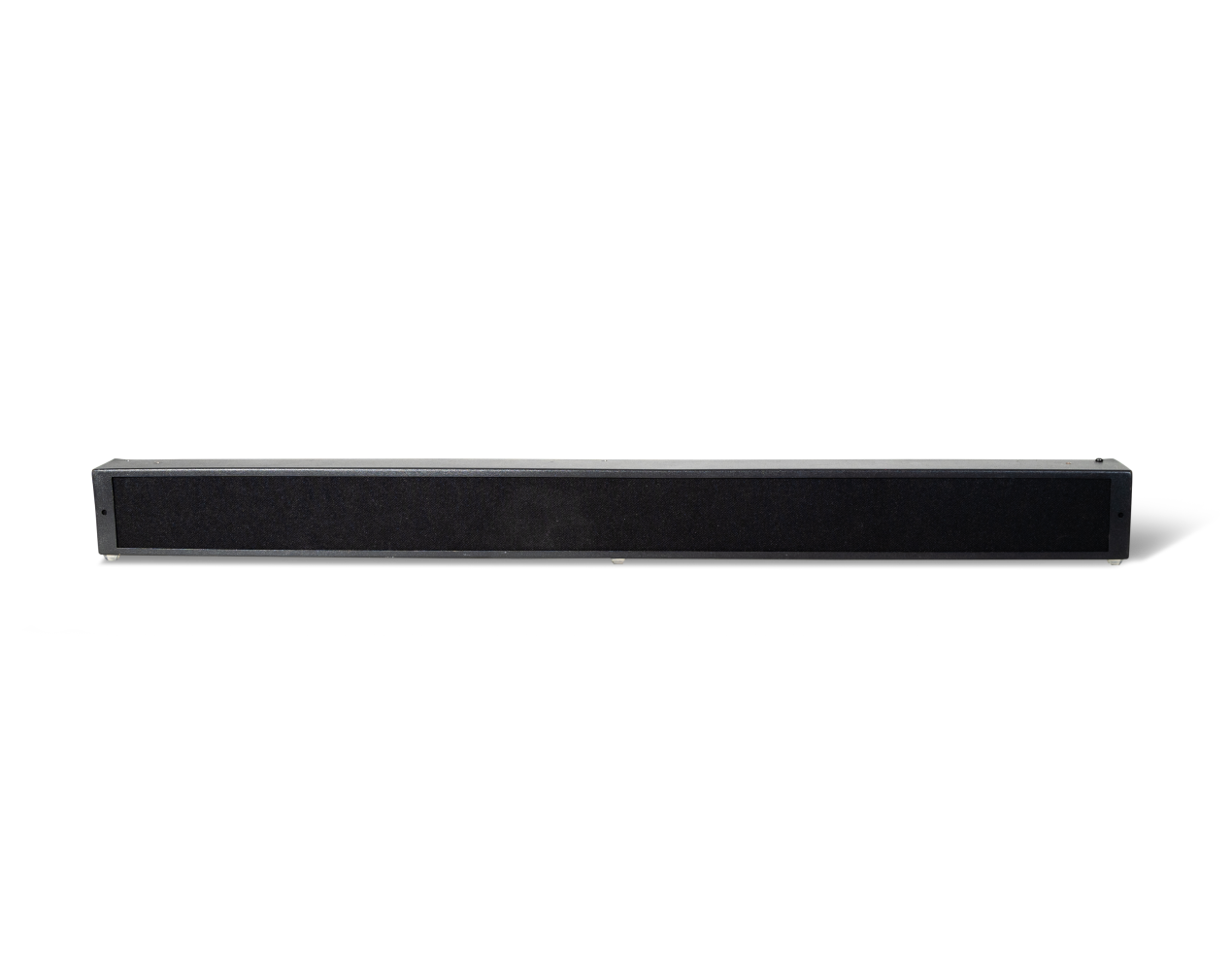

Dakota Audio MA-5 sound bar

Fuller range smaller bar speaker in sizes from 23" wide to 36"

Broader range of frequency response compared to the MA4, for when space allows. Factory adjustable for depth of focal point and is used horizontally.

Available for Purchase
Enquire
36

Sound Quality

Full range bar speaker

Compared to the smaller MA4 speaker, the MA5 has increased depth so the frequency range is improved. Ideal for voice and incidental music

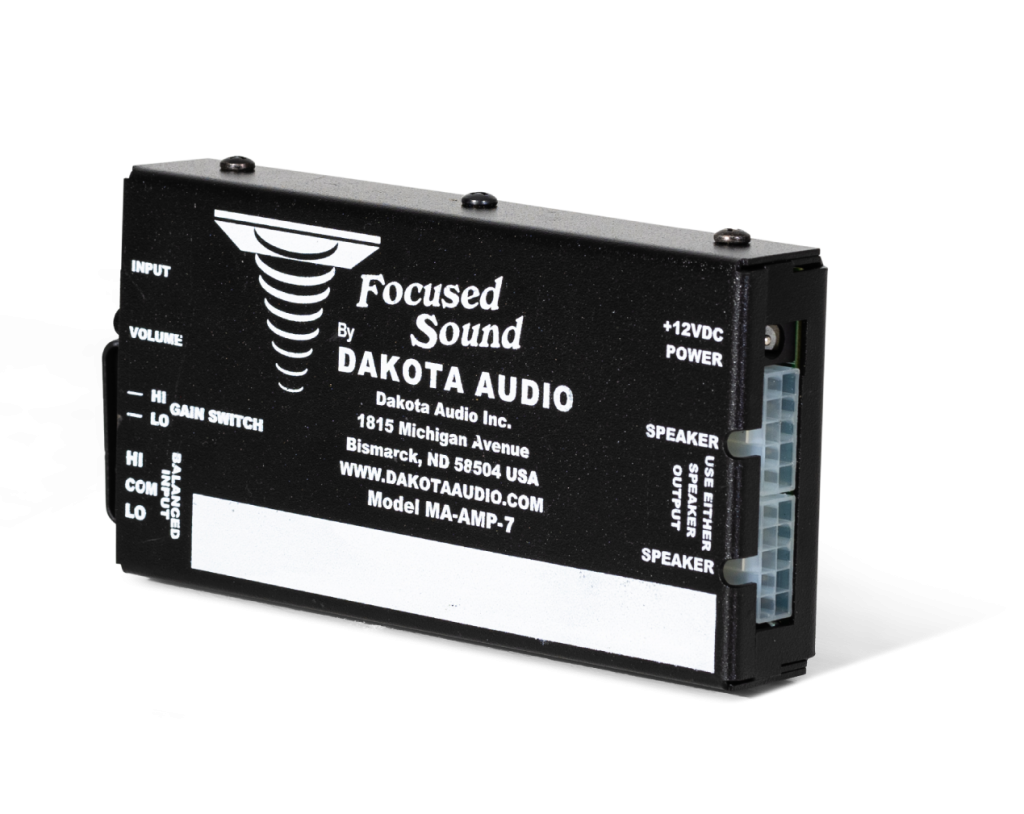

Dakota Audio amplifier

Sizes

Wide variety of lengths

The MA5 comes in 22″,23″, 25″,30″ and 36″ widths, allowing a good selection to match your screen or other installation requirements. It includes a proprietary amplifier in the package with 3.5mm input and volume and gain control

Discover which directional speaker matches your requirements

Answer a few questions to learn what’s best for you…

  • Experts in our field
  • Widest range of directional sound systems in Europe
  • Options for purchase or hire

Specifications

Maximum Output Level

90DDBA

Mini Array Size

2”/50mm D x 3.25”/83mm H Length options : 22” , 23", 25", 30" and 36"

Weight

<5 POUNDS (DEPENDING ON LENGTH)

Colour/Finish

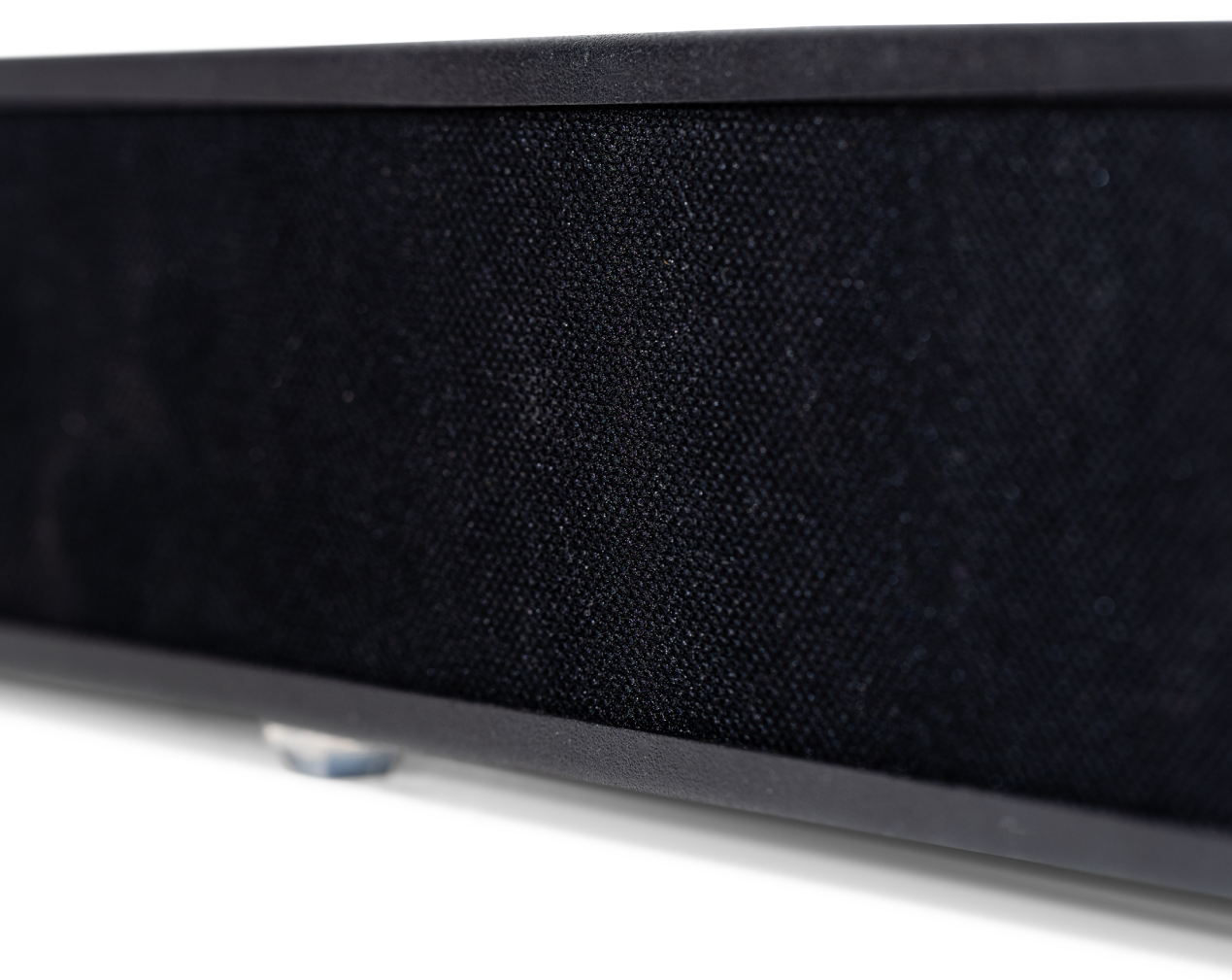

NON REFLECTIVE BLACK POWDER COAT BLACK FLAME-RETARDING CLOTH

Input level

ADJUSTABLE -15DBV TO +4DBV

Input Impedance

5,000 OHMS TRANSFORMER BALANCED

Power

15 VDC, 10 WATTS

Connections

MOLEX KK SERIES 0.156” (PLUG IN POWER SUPPLY INCLUDED)

Amplifier Size

0.9”/22mm x 5”/127mm x 3.25”/82mm
