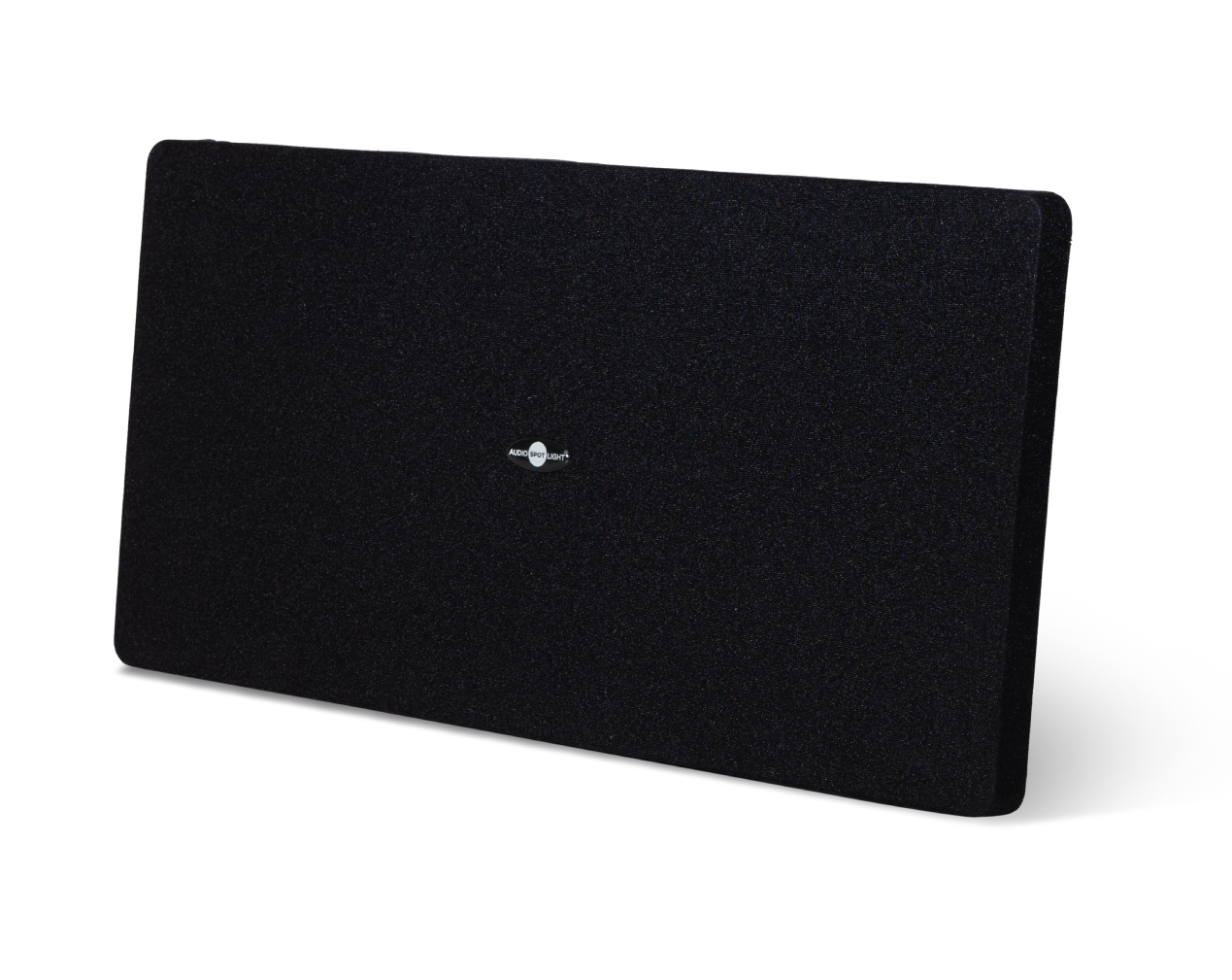

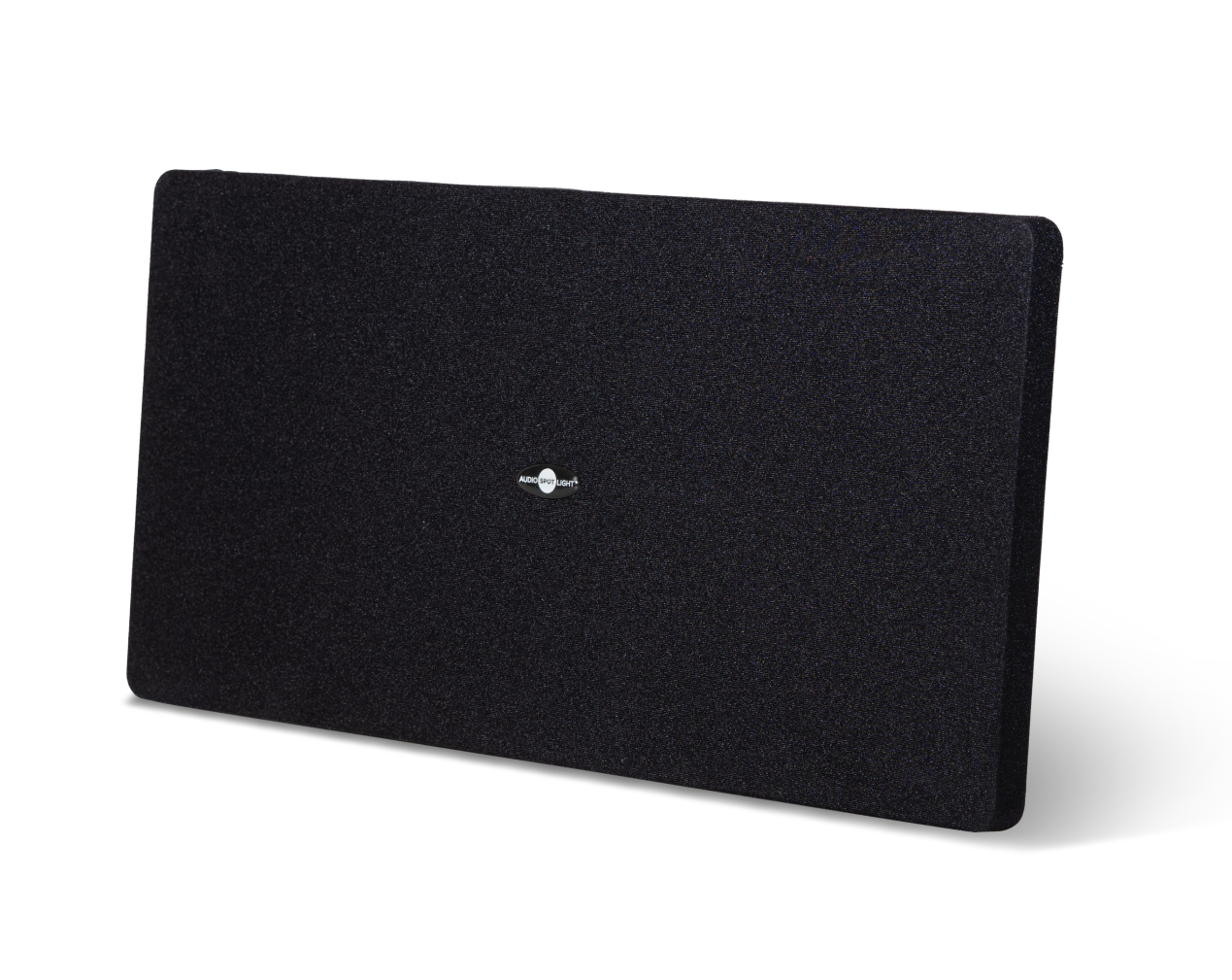

AS-168iX Audio Spotlight

Back to all products

Available for Purchase

Home » Ultrasonic Speakers » AS-168iX Audio Spotlight

The smallest available Audio Spotlight ultrasonic speaker, perfect for use with touch screen displays

The tight field of the AS-168iX lends itself to applications where there is a clear  location of the listeners head position.

Available for Purchase

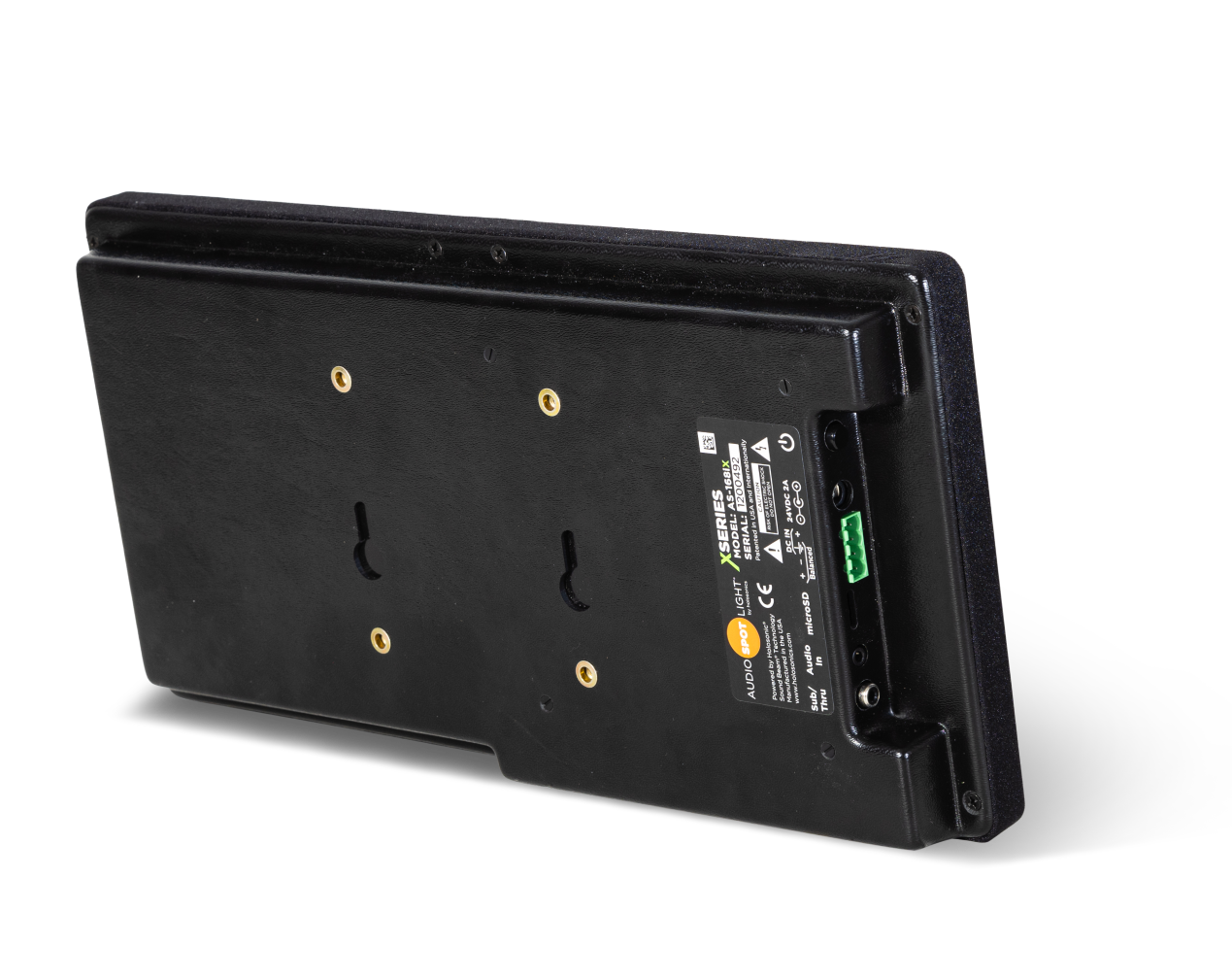

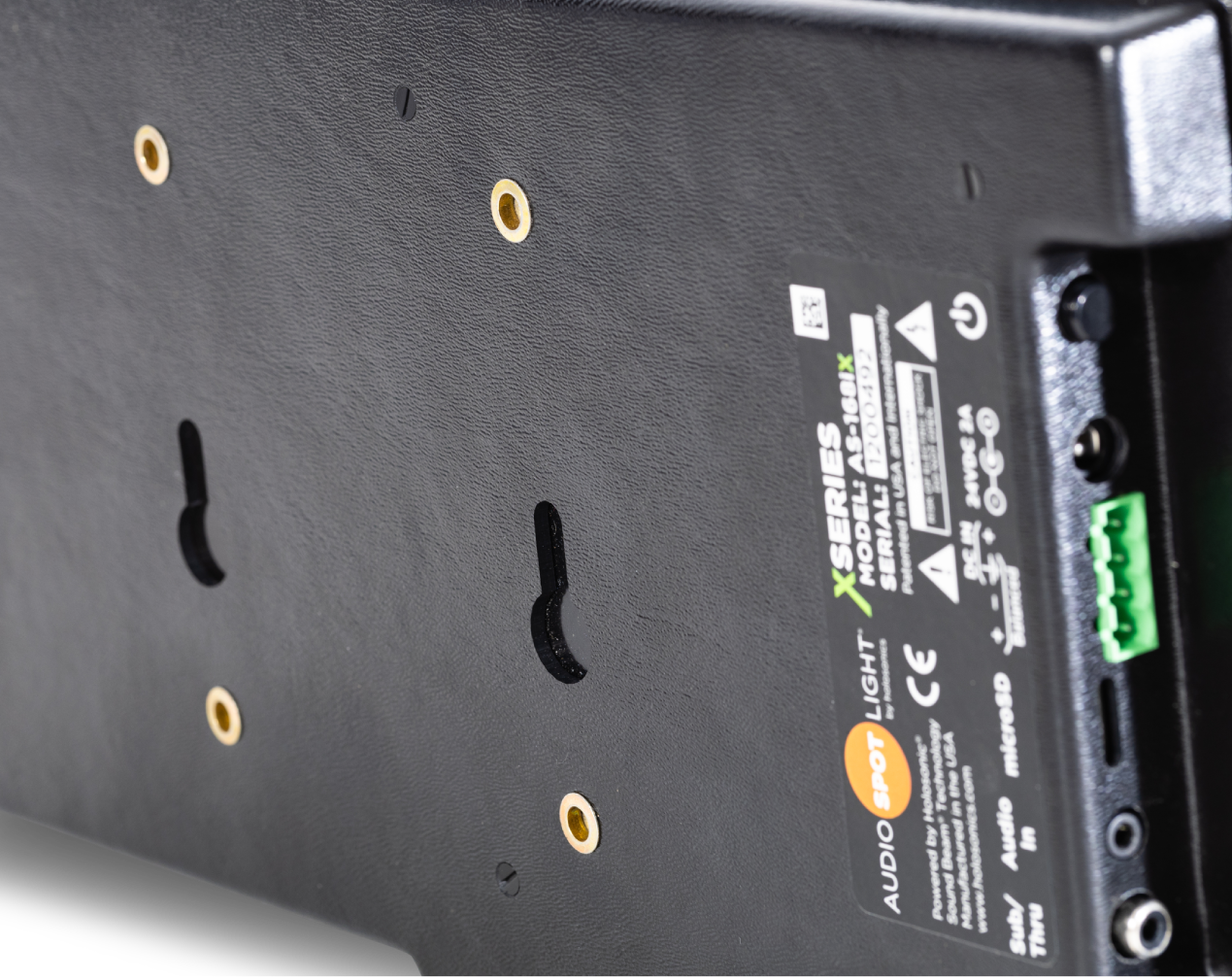

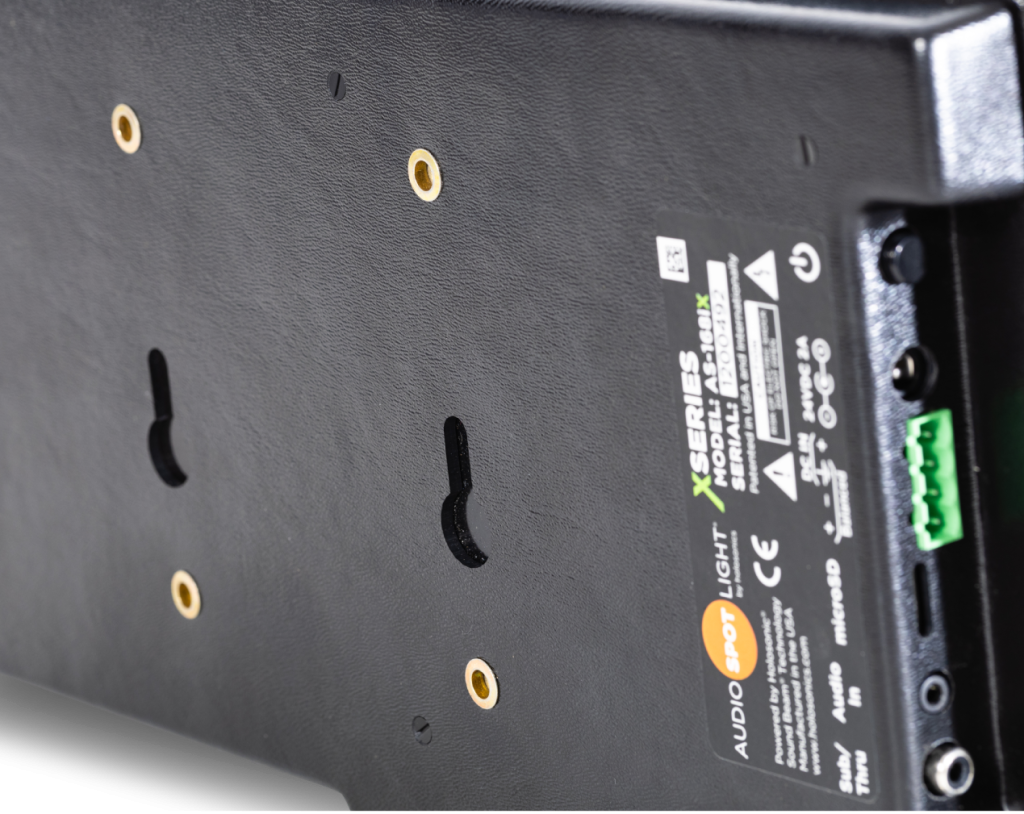

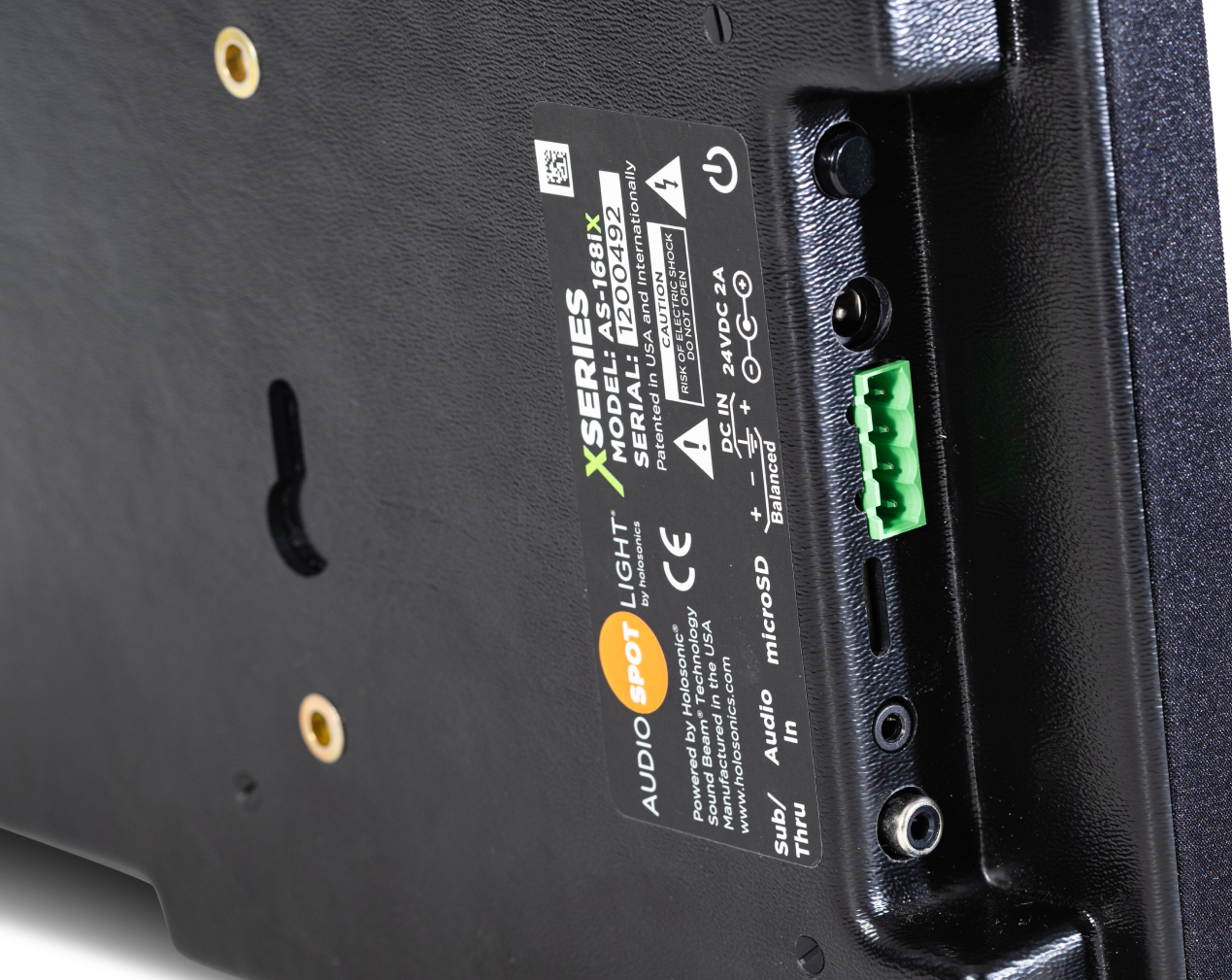

As-168iX inputs

Useful additions

On board media player and optional IR trigger and/or bluetooth

All the Audio Spotlight range include a Micro SD card media player onboard as standard. This can be coupled with an IR trigger to play the card files on activation.

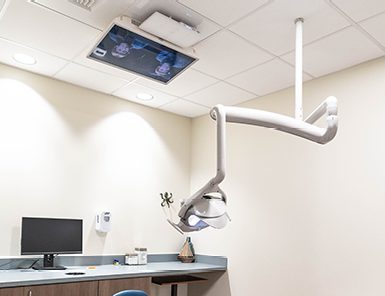

AS-168iX Audio Spotlight directional speaker installed in dentist surgery

Step in / Step out

Delight and surprise your listener

The tight beam of this speaker amazes all those who hear it. Due to the way the technology works, it feels as if the sound is being created in your head. Will make anyone stop and listen to your message

Discover which directional speaker matches your requirements

Answer a few questions to learn what’s best for you…


Ultimate directionailty

The Audio Spotlight range is engineered to provide a targeted sound beam – the size of which reflects the size of the panel itself. So the sound field for the AS-16iX is 16″ square. This is perfect for targeting a single person, but still allows some degree of flexibility in positioning.

Complete solution

The connections and hardware included onboard the speaker make it a very versatile unit. The onboard MicroSD player can loop the audio, or by using the optional IR trigger, just play when the switch is triggered. There are inputs for balanced and unbalanced audio, and even a sub through socket, for adding an active subwoofer to the mix.

Simple installation

All the Audio Spotlight range use a VESA 100 bracket solution, of which there are many suitable variations available. The ability to install and just add power to the unit for a complete installation makes cable runs a thing of the past.

  • Experts in our field
  • Widest range of directional sound systems in Europe
  • Options for purchase or hire


Power Supply

Input: 100V-240V-50/60 Hz Output: 30V DC @ 1.5 amps


Black - Standard White - Standard


Speaker dimensions: 13.75 x 7.75 x 2.125 inches


Max audio SPL output: (single emitter) 100dB @ 1.5 kHz/2 meters

Unit weight

4.5 lbs (2.0 kg) (per complete system)

Frequency response

300 Hz to 18kHz
